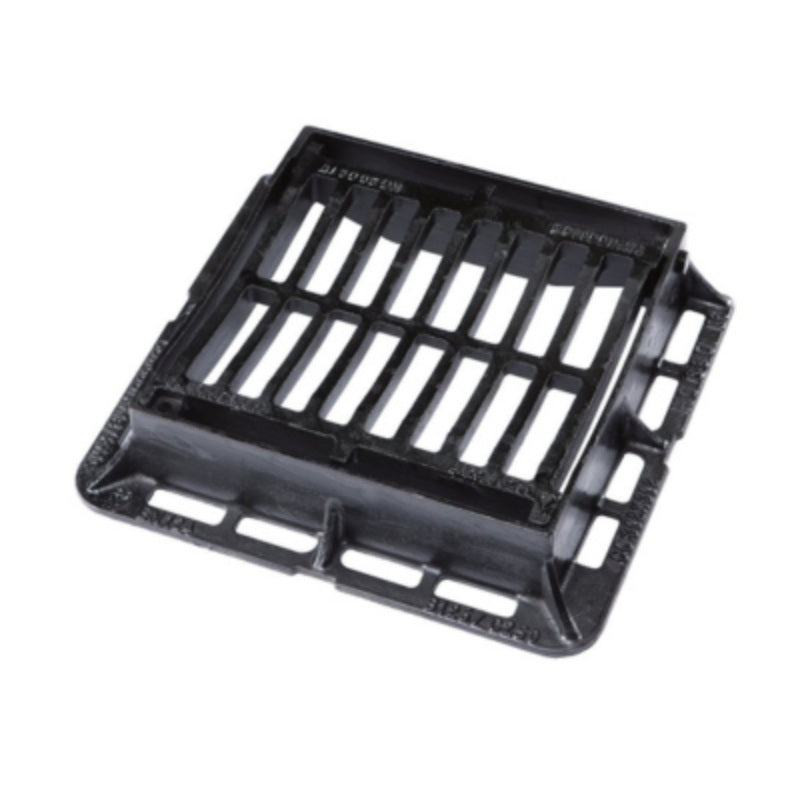

Hinged & Dished Gully Grate & Frame 302 x 302 x 75mm

The Hinged & Dished Gully Grate & Frame 302 x 302 x 75mm is a robust and reliable solution designed for kerbside, pedestrian areas, and car parks. Crafted from high-quality ductile iron, this gully grate and frame combination ensures durability and longevity, making it ideal for areas with heavy foot traffic and vehicular loads. The product adheres to the BS EN124-2:2015 accreditation, guaranteeing its compliance with stringent safety and performance standards.

With external dimensions of 400mm in length, 362mm in width, and 75mm in depth, this gully grate and frame provide a clear opening of 302mm by 302mm, facilitating efficient water drainage. The dished design and captive hinge grating enhance the water way area to 583cm², ensuring optimal water flow and preventing blockages. The hinged feature also allows for easy access and maintenance, making it a practical choice for various applications.

Rated for a C250 loading, this gully grate and frame can withstand substantial weight, making it suitable for car parks and other areas where vehicles frequently pass. Its sturdy construction and thoughtful design ensure it can handle the demands of both pedestrian and vehicular traffic, providing a reliable drainage solution that stands the test of time.

Key Features

• Application: Kerbside, Pedestrian Areas, Car Parks
• Loading: C250
• Material: Ductile Iron
• External Dimensions: 400mm (L) x 362mm (W) x 75mm (D)
• Clear Opening: 302mm x 302mm
• Accreditation: BS EN124-2:2015
• Gratings: Dish, Captive Hinge
• Water Way Area: 583cm²
