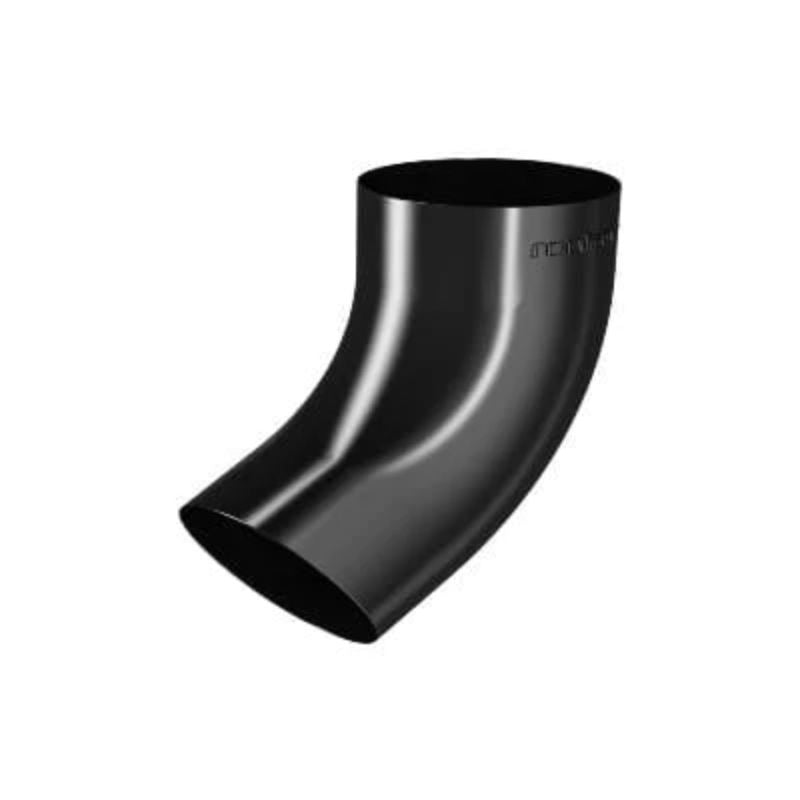

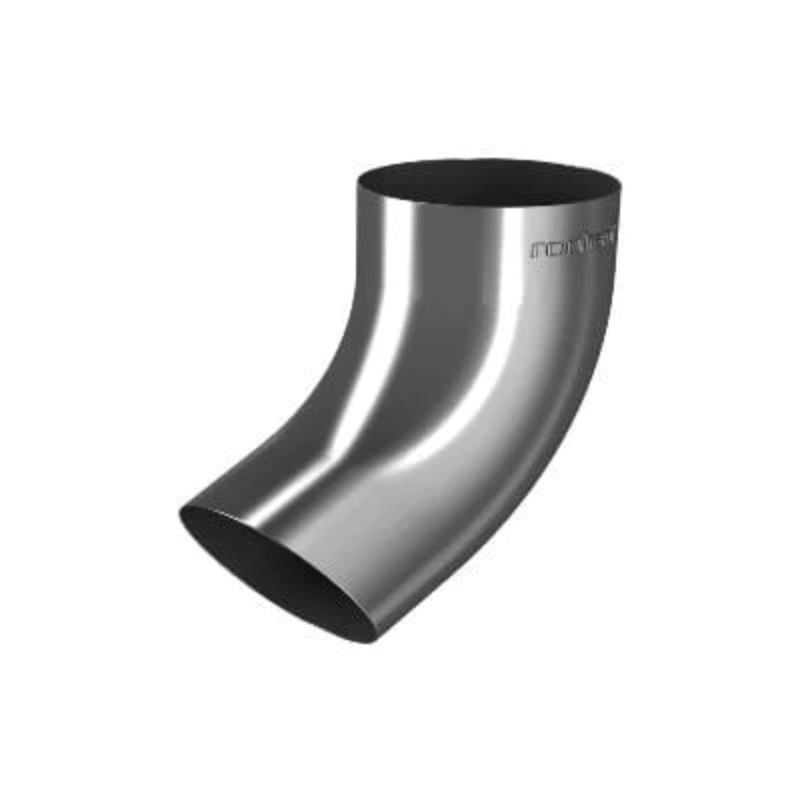

Roofart 60 Degree Pipe Bend - Full Range

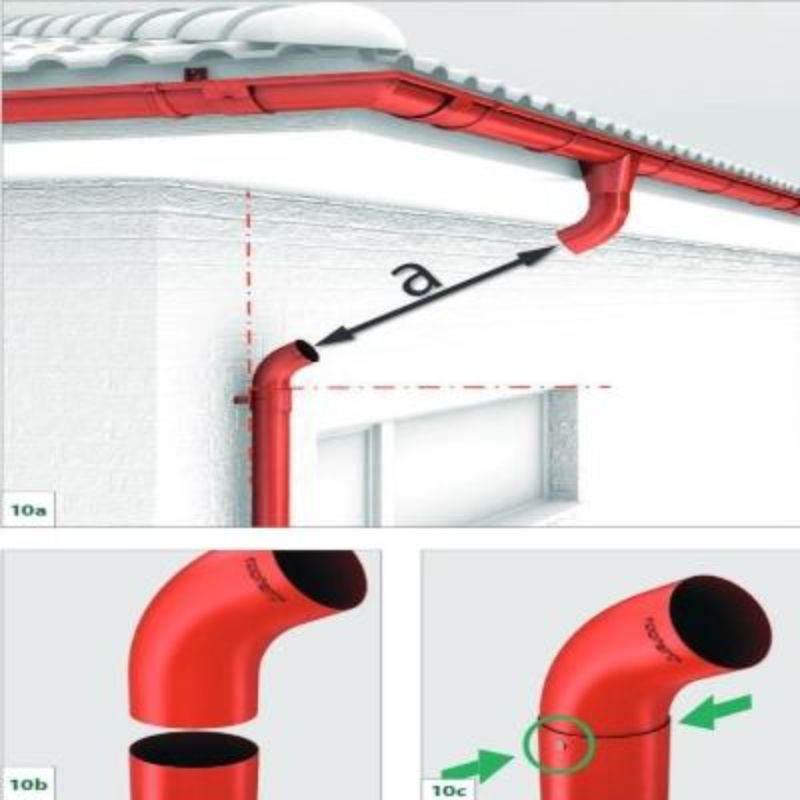

Male and female ends can connect directly to outlets or straight pipes without need for connectors. 2 bends can be used to bring pipe from the outlet closer to the wall with a small length of pipe between. Also useful to change the direction of water drainage around obstacles. Bottom end of bend is the male (spigot) end capable of fitting inside the plain end of a down pipe or into the top end of another bend.

Key Features:

• Simple push fit design
• Impact resistant
• 5 year manufacturer's warranty
• Fully recyclable product

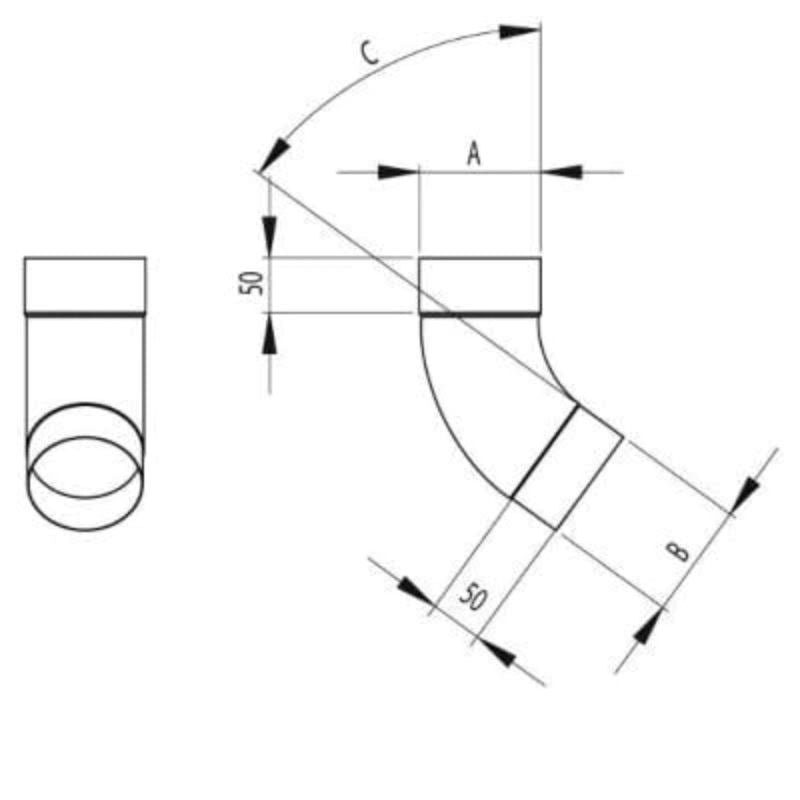

Dimensions for 87mm (see drawing):

• Dim A - 87mm
• Dim B - 86mm
• Dim C - 60degree
• Dim D - 50mm

Dimensions for 100mm (see drawing):

• Dim A - 100mm
• Dim B - 98mm
• Dim C - 60degree
• Dim D - 50mm
