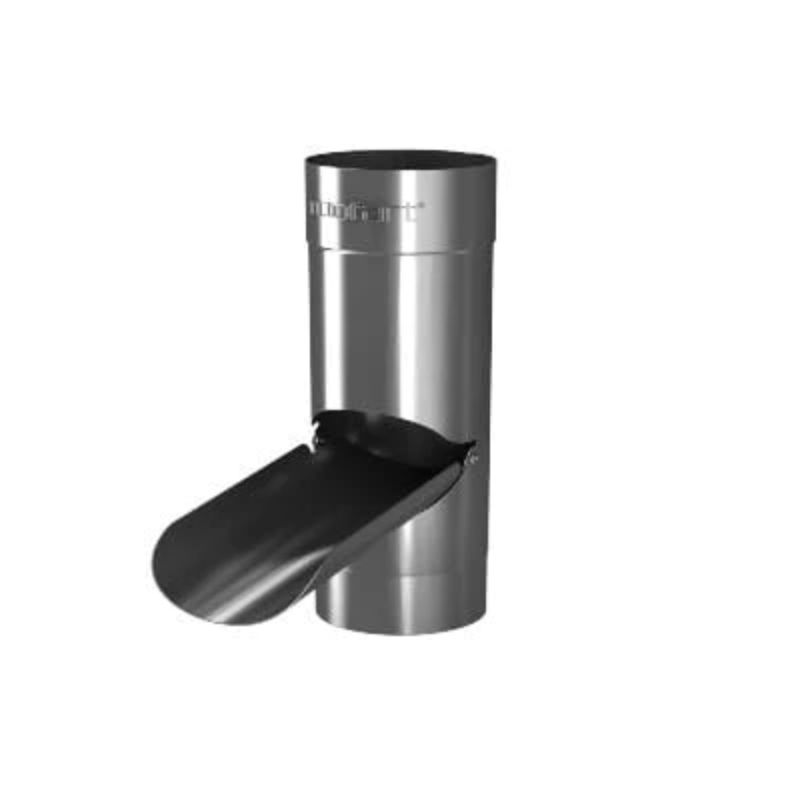

Roofart Manual Rainwater Diverter - Full Range

Manual Rainwater Diverter Folds down to direct water to another circuit or water butt.

• Keep closed for water to continue to flow direct to drainage
• Socketed (female end) at the top to allow fitting directly over plain end of pipe above
• Spigoted (male end) at the bottom to allow fitting directly into plain end of pipe below

Key Features:

• Stylish branded design
• Easy way to divert into water butt or bucket when needed
• Can be positioned any height within the pipe run
• 5 year manufacturer's warranty
• Fully recyclable product

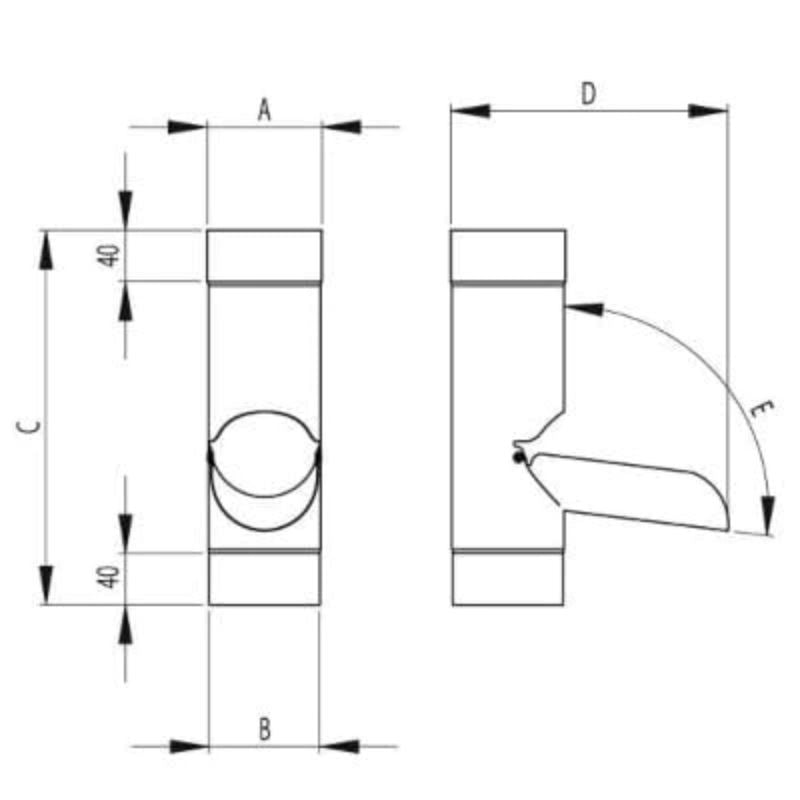

Dimensions for 87mm (see drawing):

• Dim A - 89mm
• Dim B - 86mm
• Dim C - 290mm
• Dim D - 200mm
• DIm E - 105 degree
• Dim F - 40mm

Dimensions for 100mm (see drawing):

• Dim A - 100mm
• Dim B - 98mm
• Dim C - 350mm
• Dim D - 230mm
• DIm E - 105 degree
• Dim F - 40 degree
