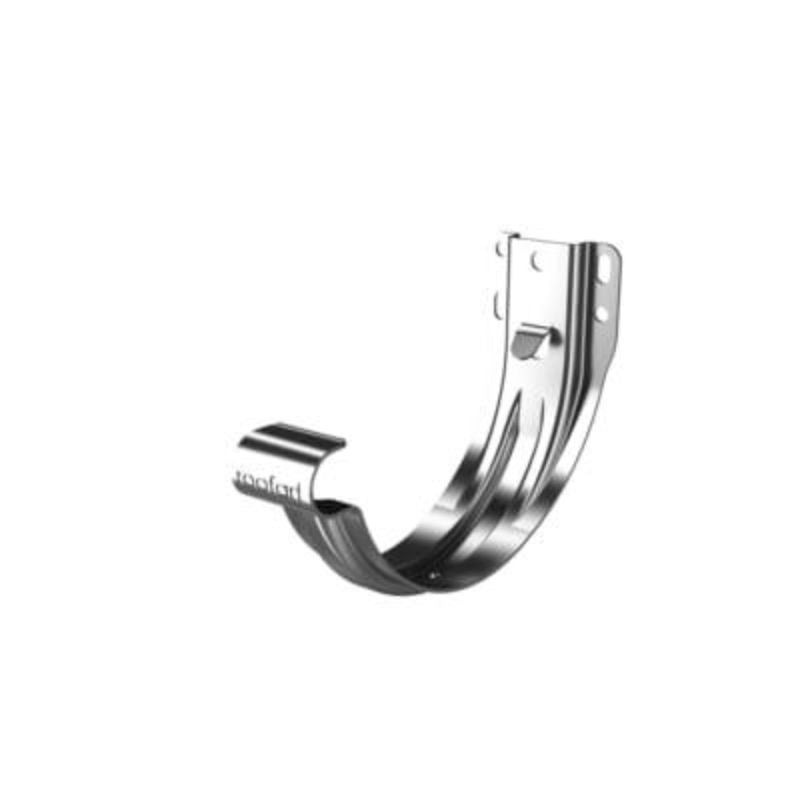

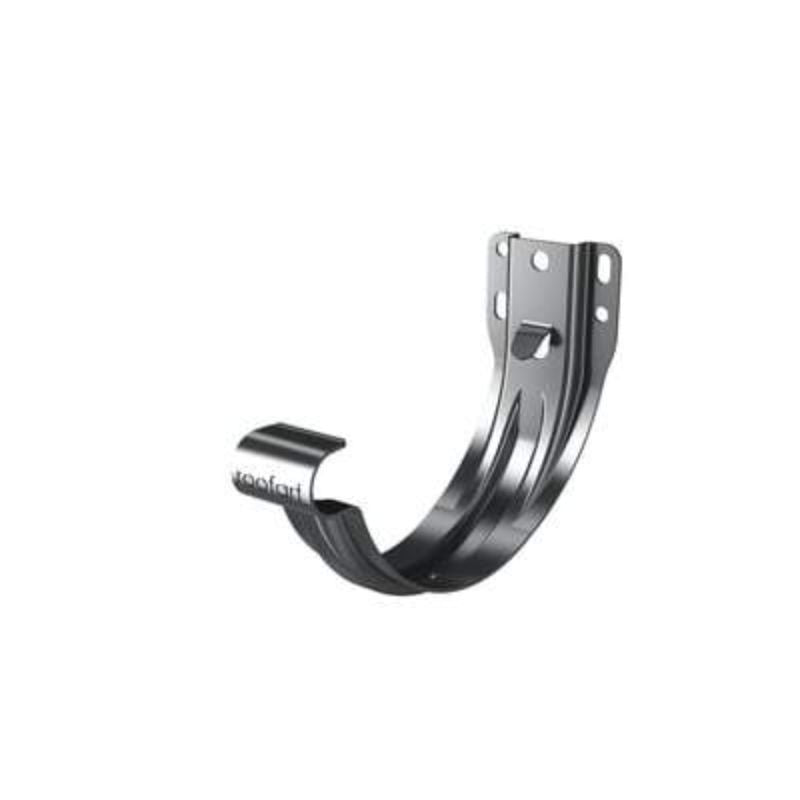

Roofart Universal Fascia Bracket - Full Range

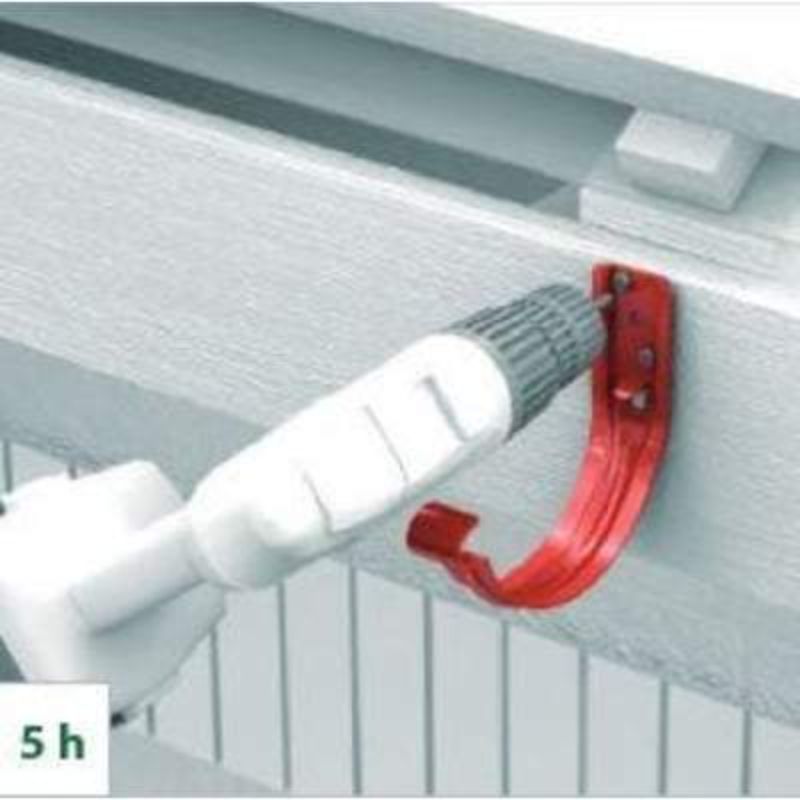

Universal Fascia Bracket can be mounted directly on the fascia board or rafter using the bracket support.

Note that the back edge of the bracket stands 40mm above the back edge of the back edge of the gutter. This means that the fascia board must allow for fixing points above the line of the gutter (this is normal practice on most projects but worth checking the bracket dimensions in the drawing opposite).

Key Features:

• Strengthening channel creating robust heavy-duty bracket
• Fixing points above gutter line meaning access to bracket without removing gutter
• Gutter snaps in to place easily and holds firm
• 5 year manufacturer's warranty
• Fully Recyclable product

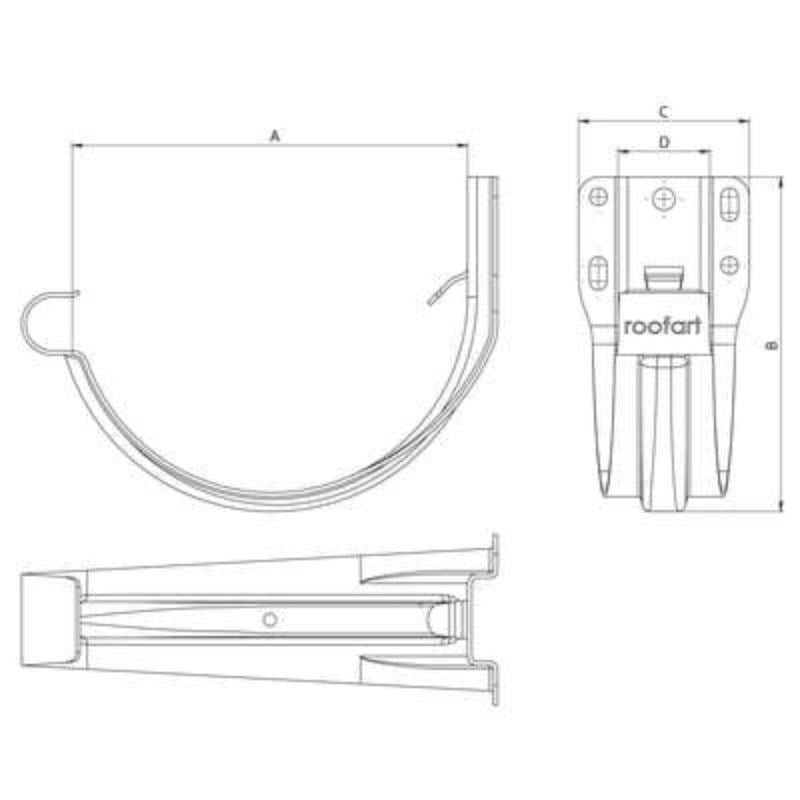

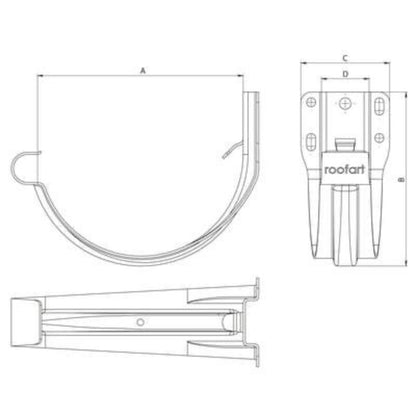

Dimensions for 125mm (see drawing):

• Dim A - 125mm
• Dim B - 110mm
• Dim C - 54mm
• Dim D - 25mm

Dimensions for 150mm (see drawing):

• Dim A - 150mm
• Dim B - 172mm
• Dim C - 45mm
• Dim D - 25mm
