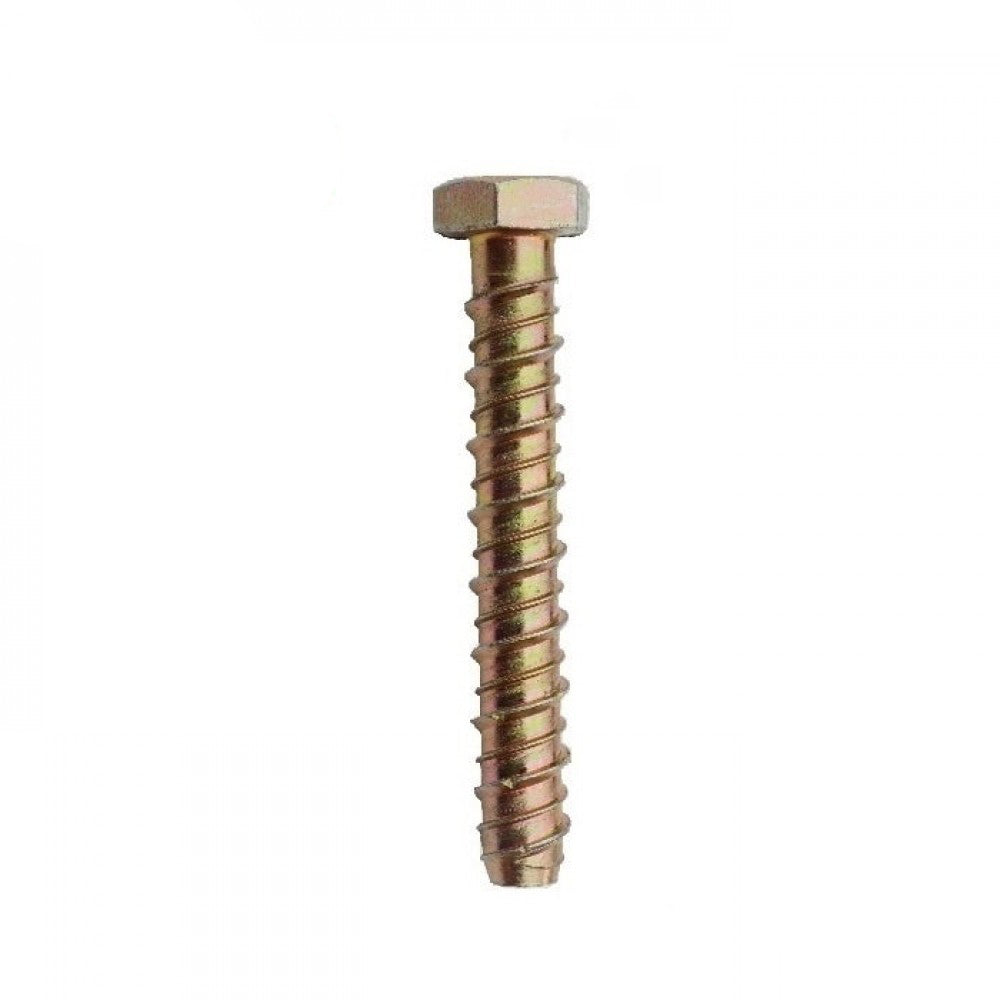

M12 x 130mm Hex Head Atlas Bolt ZYP (Box of 25)

M12 x 130mm Hex Head Atlas Bolt ZYP (Box of 25)

Samac Hex Head Atlas Bolts
Atlas Bolts have a dual thread which ensures correct alignment when fitting, and can be completely removed.

The M12 x 130mm Hex Head Atlas Bolt ZYP (Box of 25) is a box of bolts manufactured from high tensile boron steel, compact with 10 sharp thread forming teeth that ensure this fast and simple installation on any kind of substrate.

Substrates that are suitable with these bolts include concrete, stone, brick, concrete block, marble, and timber. These bolts are fully removable, meaning that they can be reused. The M12 x 130mm Hex Head Atlas Bolt ZYP (Box of 25) are available with three different screw heads, which are: Countersunk, Hex Flange, and Hex.

It has high loads with low expansion forces which makes them an effective alternative to chemical anchors, and are suitable for close to edge fixing. These bolts have a tensile strength of 800N/mm2 after heat treatment. It should be noted that if you want to achieve the top tension and shear loads, they need to install at least 10x the anchor diameter between each bolt, and 10x the anchor diameter from the edge of your base material.

Features & Benefits:

• Manufactured from high tensile boron steel.
• Fast and simple installation.
• Fully removable.
• High loads with low expansion forces - an effective alternative to chemical anchors.
• Suitable for close to edge fixing.
• 10 sharp thread forming teeth.
• Available with 3 different screw heads: Countersunk, Hex Flange and Hex.
• Dual thread ensures correct alignment.
• Suitable for a wide range of substrates; from timber to marble.
• Tensile strength of 800N/mm2 after heat treatment.

Please note, to achieve the published tension and shear loads, Atlas Bolts should be installed at least 10x the anchor diameter between each bolt and 10x the anchor diameter from the edge of the base material.
