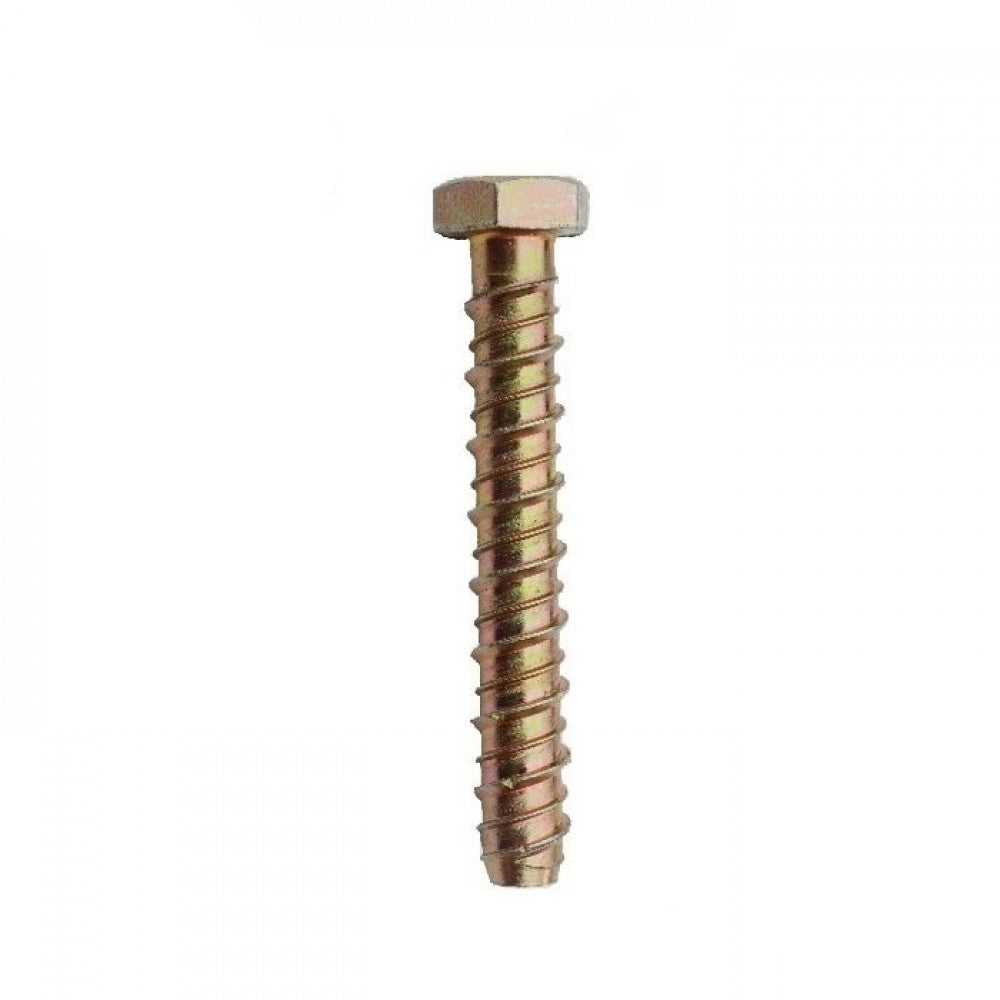

M12 x 75mm Hex Head Atlas Bolt ZYP (Box of 50)

M12 x 75mm Hex Head Atlas Bolt ZYP (Box of 50)

Samac Hex Head Atlas Bolts
Atlas Bolts have a dual thread which ensures correct alignment when fitting, and can be completely removed.

One of the UK's leading manufacturers of nails, fasteners, screws and fixings, Samac make the M12 x 75mm Hex Head Atlas Bolt ZYP (Box of 100) which is a high performance hexagonal headed bolt for fixings in substrates such as concrete, timber, brick, concrete blocks, marble and stone.

Made from high tensile boron steel for extraordinary strength, with a dual thread that facilitates the correct alignment when fitting and possesses ten, extremely sharp, thread forming teeth.

The atlas bolts must be installed at least ten times the anchor diameter between each bolt and ten times the anchor diameter from the edge of the base material to achieve the advertised shear loads. Unlike adhesives, which fix items together either permanently or semi-permanently, these bolts will undo and are fully removable making much changes and adjustments to fixtures and fixings much easier to carry out.

Features & Benefits:

• Manufactured from high tensile boron steel.
• Fast and simple installation.
• Fully removable.
• High loads with low expansion forces - an effective alternative to chemical anchors.
• Suitable for close to edge fixing.
• 10 sharp thread forming teeth.
• Available with 3 different screw heads: Countersunk, Hex Flange and Hex.
• Dual thread ensures correct alignment.
• Suitable for a wide range of substrates; from timber to marble.
• Tensile strength of 800N/mm2 after heat treatment.

Please note, to achieve the published tension and shear loads, Atlas Bolts should be installed at least 10x the anchor diameter between each bolt and 10x the anchor diameter from the edge of the base material.
