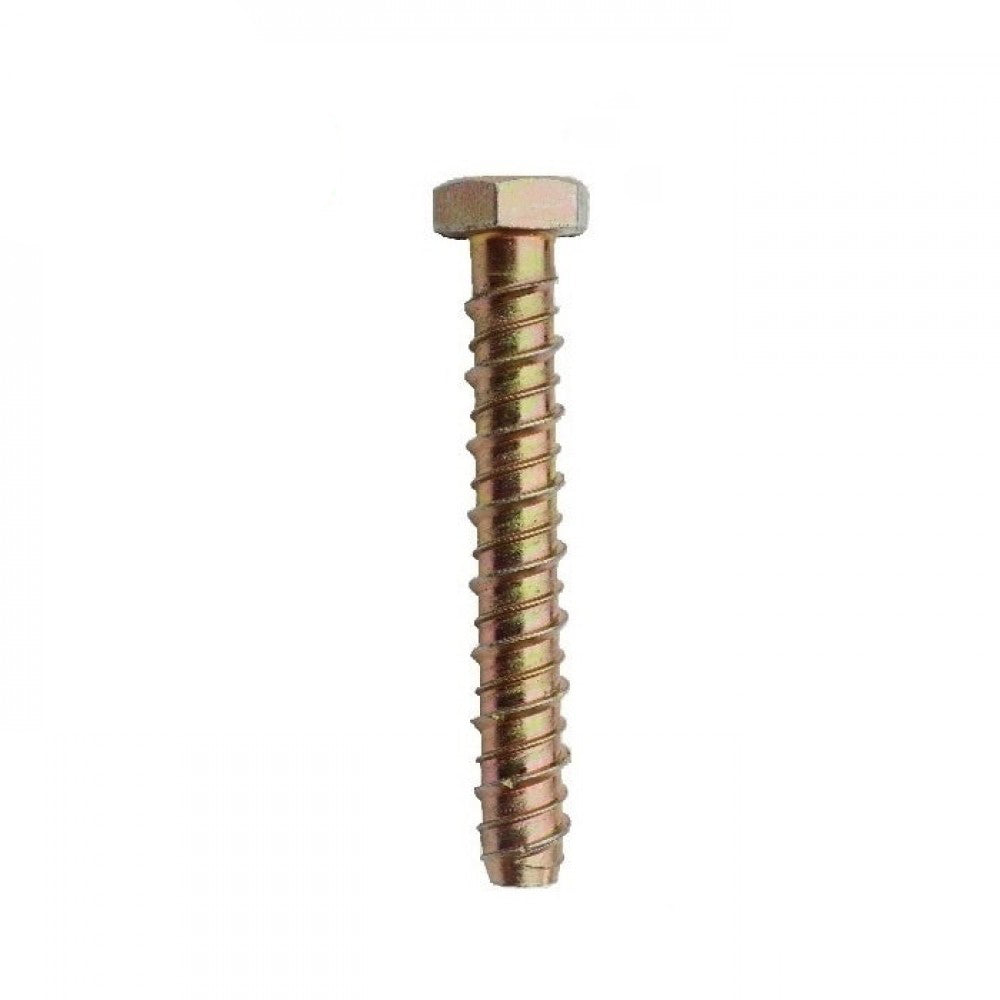

M8 x 130mm Hex Head Atlas Bolt ZYP (Box of 50)

M8 x 130mm Hex Head Atlas Bolt ZYP (Box of 50)

Samac Hex Head Atlas Bolts
Atlas Bolts have a dual thread which ensures correct alignment when fitting, and can be completely removed.

Manufactured from high tensile boron steel which is perfect for screws being used on domestic or commercial buildings. The M8 x 130mm Hex Head Atlas Bolt ZYP (Box of 50) are formed with ten specialist sharp teeth which form into threads.

The atlas bolt ensures fast and stress-free installation with the highest level of accuracy. It can be used on a wide variety of substrates which includes, concrete, concrete block, brick, timber and also any stones or marble.

The M8 x 130mm Hex Head Atlas Bolt ZYP (Box of 50) has a dual thread which ensures that once ready to install the nail has the correct alignment keeping straight once being screwed in. It comes sized at 8mm x 130mm with a hex head type and a tool drill size of 8mm also. If installed incorrectly it is also fully removable, so don't worry about damaging your substrate.

Features & Benefits:

• Manufactured from high tensile boron steel.
• Fast and simple installation.
• Fully removable.
• High loads with low expansion forces - an effective alternative to chemical anchors.
• Suitable for close to edge fixing.
• 10 sharp thread forming teeth.
• Available with 3 different screw heads: Countersunk, Hex Flange and Hex.
• Dual thread ensures correct alignment.
• Suitable for a wide range of substrates; from timber to marble.
• Tensile strength of 800N/mm2 after heat treatment.

Please note, to achieve the published tension and shear loads, Atlas Bolts should be installed at least 10x the anchor diameter between each bolt and 10x the anchor diameter from the edge of the base material.
