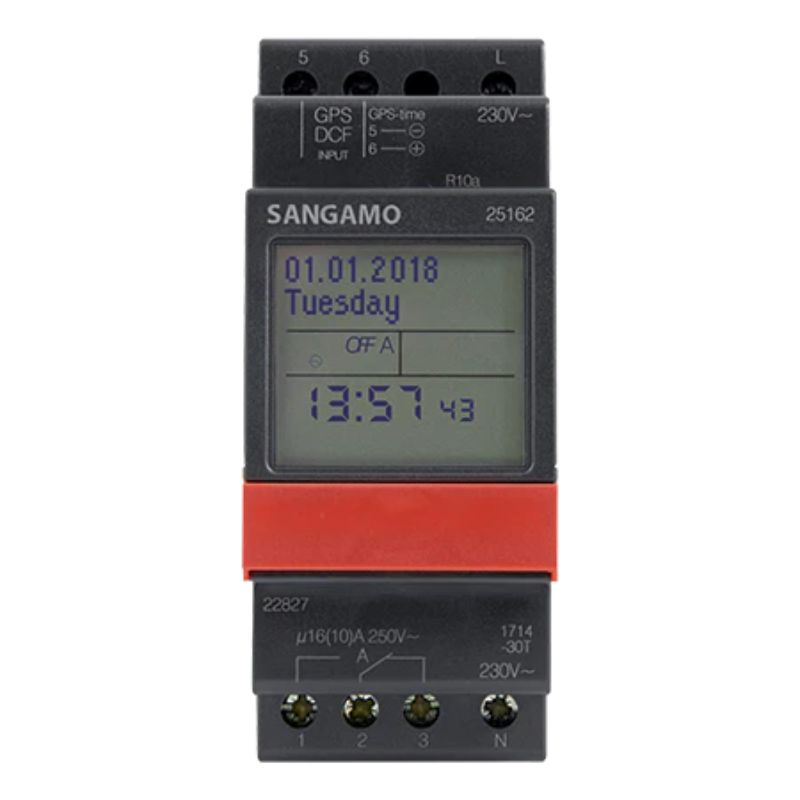

Sangamo DIN 25162 - 2 Module / Single Channel Yearly Time Switch

A 365 day, single channel, din rail yearly time switch. Yearly programming with Easter function, Weekday function and Extra-switching function. Text based menu system and self explanatory symbols displayed on a large, backlit dot matrix area to provide two high resolution text lines. Pulse programming allows you to set small bursts (e.g. school bells) in 1 second steps.

The 25162 can be extremely quick and easy to program thanks to the ability to program via your computer using Sangamo’s optional EasyVue software & the USB Hub (25195) or by Bluetooth using the Sangamo Connect Android App and Bluetooth USB Hub (25196). Both require a programming key (25193 – not supplied).

Key Features:

• Full 365 day programming
• Text based menu & self-explanatory symbols
• Display with Large dot matrix area to provide two high resolution text lines
• Automatic sorting of switching times on readout
• Can be programmed with supply disconnected
• Programmable by PC or Sangamo Connect Android App (additional accessory required)
