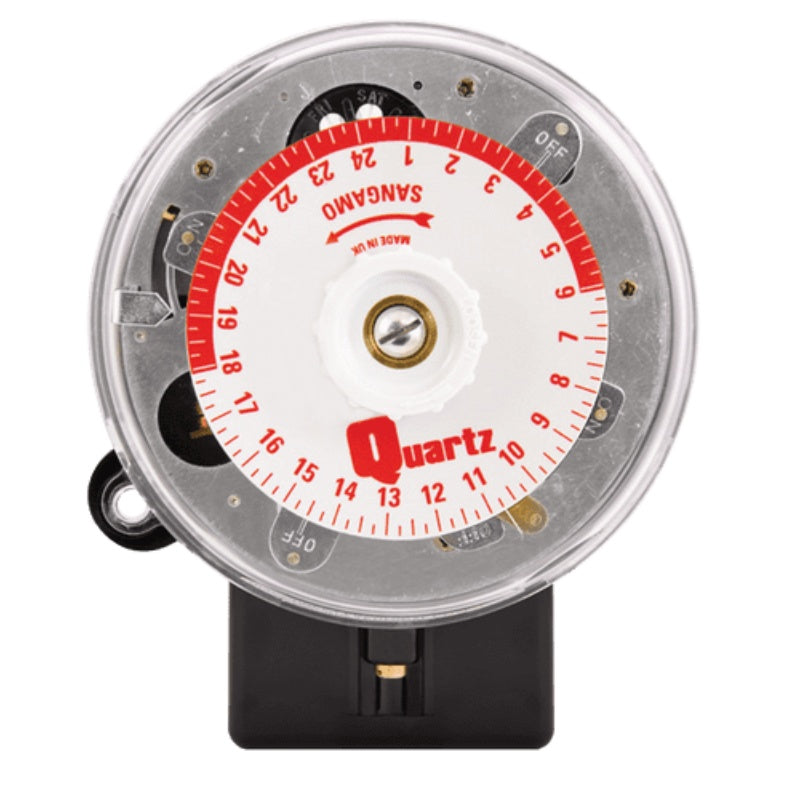

Sangamo Q586.2 Standard Round Pattern 2 On/Off Changeover Time Switch

Sangamo have been manufacturing time switches from our Port Glasgow, Renfrewshire factory for over 65 years. Our reputation for quality and reliability is unrivalled.

Today we offer a wide range of time switches and heating controls for domestic, commercial and industrial use, via our close relationships with the UK & Irelandâs major electrical wholesalers. We are able to supply our products to companies and organisations the length and breadth of the British Isles.

Sangamo has a proud reputation for quality and reliability. To ensure our products can be installed and used with complete confidence we guarantee our full range of time switches and heating controls for five years from the date of manufacture.

Technical Information:

• Programming 24 hour programme with 2 ON/OFF operations per day
• Display 24 hour dial
• Mounting Surface mounting
• Current Rating SPST: 20amp resistive
• Supply 230V, 50/60 Hz a.c.
• Base Type 4 Pin
• Reserve 100 hrs (providing battery has been charged for 300 hrs)
• Day Omission Yes (omits the “ON” operation)
• Early Operation Yes (Early “ON”)
• Temp Override Facility Advance to “OFF”, when program “ON” and will remain “OFF” unit next
• (Manual Button) “ON” operation and vice versa
• Cable Size 6.0mm2
• Timing Accuracy 5 mins/year
• Power Consumption 0.6W at 230V
• Ambient Temperature Range Designed to operate over a temperature range of 0°C to 50°C continuous
• Live Parts Protection This timer is totally protected by its enclosure
• Dirt Protection Normal domestic dust deposits only
• Moisture Protection Ordinary: has no special protection against moisture
• Shock Protection Class 1 (Product must be earthed)
• Dial Calibration 15 min divisions
