StrataShield Self Adhered Aluminium Faced AVCL 40m x 1.1m (44m2) (26 P/Pal)

Product Overview

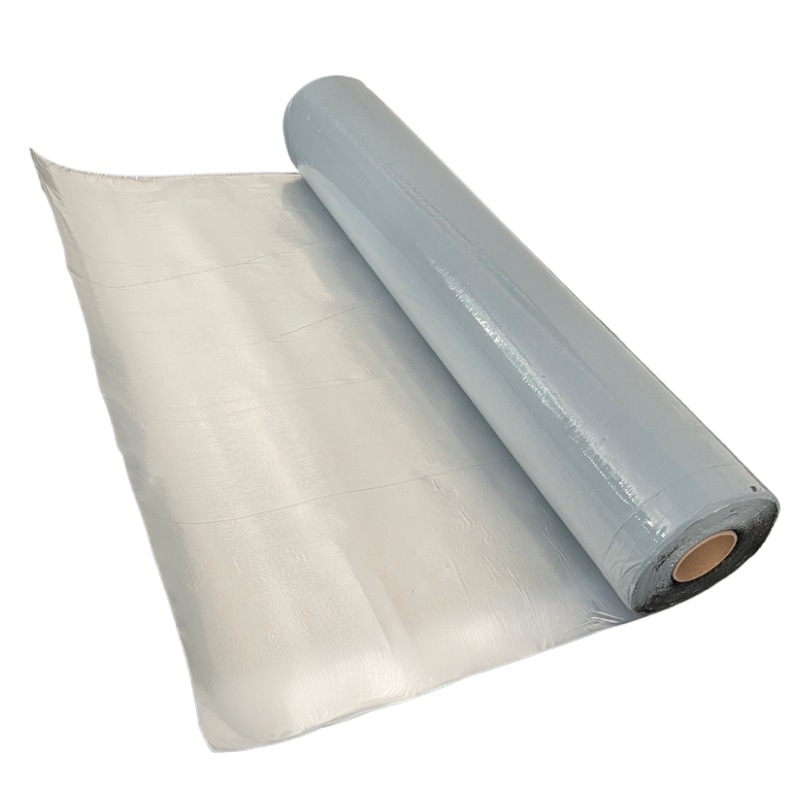

StrataShield SA ALU AVCL is a cold-applied, self-adhesive bituminous air and vapour barrier which is saturated and coated with high quality SBS (Styrene-Butadiene-Styrene) modified bitumen. It has an integrated aluminium foil layer, a glass fibre reinforcement and is finished on the underside with a removable siliconised film.

Typical Use

StrataShield SA ALU AVCL is designed for use as a high performance air and vapour barrier, and is ideal for use on either metal profiled or plywood decking and in areas prone to increased temperatures and moisture levels (e.g. factories, swimming pools, gyms. StrataShield SA ALU AVCL should be used as part of a multi-layer built-up roofing system.

Application Guidelines

StrataShield SA ALU AVCL should be installed in accordance with manufacturer recommendations and all relevant national standards and codes of practice, including BS 8217: 2005 – the code of practice for reinforced bitumen membranes for roofing.

The membrane should be unrolled, aligned and set into position. Once aligned, one end of the siliconised film should be peeled back. The edge of the StrataShield SA ALU AVCL membrane can then be pressed to the substrate. The product should then be unrolled whilst simultaneously pulling off the siliconised film.

At all times, we recommend that this product is installed in accordance with the NFRC’s Safe2Torch guidlines.

Features & Benefits

• Cold-applied, self-adhesive application
• Ideal for flame-free installations
• Steam sealing technology
• Walkable and puncture proof
• Excellent tear strength resistance
• Forms an airtight layer
• Resistant to chemicals and aging
• Excellent low temperature flexibility at -25C
