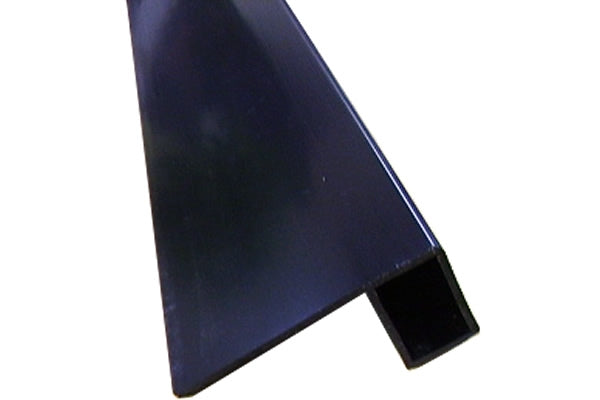

UltraTrim Curb Edge x 3.5m

Ultratrim Curb Edge 3.5mtr

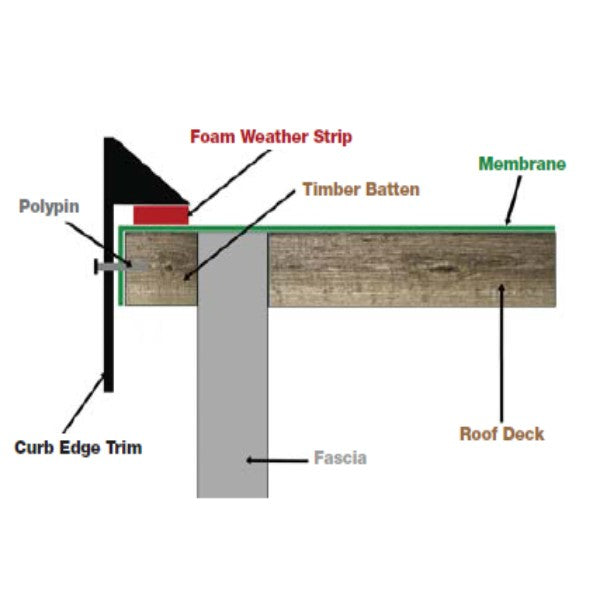

It is recommended to fix a 25 x 50mm batten to ensure a secure hold. Cut the curb edge trim to required length and fix the foam tape to the trim as shown to the right. Fill the open ends of the curb trim with sealant or use the small end caps.

Ensure the membrane overhangs the roof edge a minimum of 50 mm.

Complete installation by fixing any end caps required as shown below if going from a curb to a gutter trim.

Key Features:

• Competitive price
• Base material more pliable and therefore does not shatter if dropped;
• Enables installation on curved edges such as bay windows
• Superior finish and neater appearance when installed
• UV Stable
• Better design - mechanical fix of two part gutter edge trim as opposed to ‘snap-fit’ provides a more secure fix and prevents warping and ‘snap-out’ of two parts when factory seams or repair patches are present in the membrane
