VELUX EFL MK06 0032B triple vertical slate Flashing Kit 78x118cm

As an authorised Velux dealer we provide the full range of Velux Flashing kits. When ordering a window make sure to buy the correct flashing kit. The VELUX EFL 0032B triple slate flashing is suitable for slates up to 8mm thick and suitable for vertical combinations only. This flashing is used for installing three VELUX roof windows and three VELUX vertical elements side-by-side-by-side with an 18mm gap.

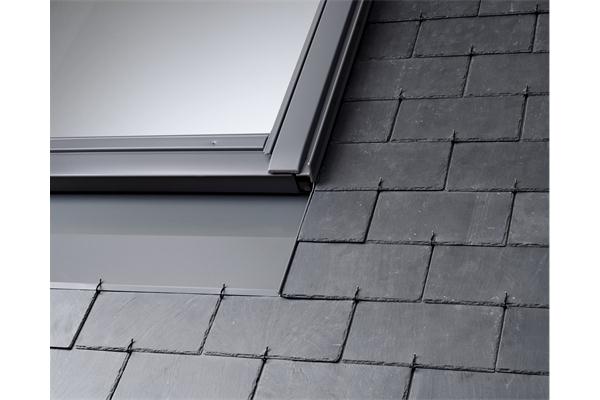

Velux flashing kits integrate with the roof covering to provide a weather-tight finish around the window. The flashing kits are compatible with any slate (up to 8mm thick), but not interlocking. Velux window flashings are designed to sit under the roofing materials, and then the water from the roof is collect in the built-in guttering system. The gutter overlaps a second section of the flashing to help the water flow smoothy down the side of the window. The Velux flashing apron moulds to the roof material profile to allow the water to drain away.

• Flashings for installing three roof windows and three vertical elements into slate up to 8mm thick
• For roof pitches from 15 - 55 degrees
• Not for interlocking slate or thatch
• Maintenance free grey aluminium as standard.

VELUX code EFL MK06 0032B

Specifications Flashing for slates, up to 8mm thick
